PACIFIC AMF600-IV Automatic Multi Forming Machine
CONDITION:
NEW
NEW
STOCK STATUS:
ENQUIRE
ENQUIRE
PACIFIC AMF600-IV Automatic Multi Forming Machine is a high capacity machine that can form a large range of custom shaped products. The machine can be tted with a range of di erent forming dies including nuggets, sh bites, meatballs, hamburgers, etc. Robust design and solid construction ensure machine reliability. A high quality servo drive system to drive the mould plate ensures accuracy and repeatability.

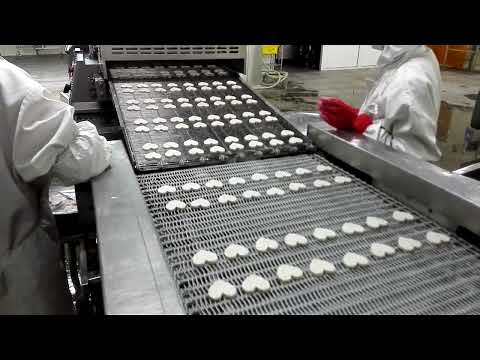

PACIFIC 600 IV FORMER
PACIFIC 600mm Automatic Shuttle Conveyor Transfer System
• Four screw feeding system reduces any cutting of the material, while allowing for higher production and better consistency
• Original German SIEMENS PLC processor with touch screen HMI
• Highly accurate with weight error of only ≤1%
• Saftey interlock switches to ensure safe operation by operators
• Vickers, Stauff, Integrated hydraullic components
• FESTO pneumatic system
• Full stainless steel construction
• Conforms with HACCP
• CE Approved
• Original German SIEMENS PLC processor with touch screen HMI
• Highly accurate with weight error of only ≤1%
• Saftey interlock switches to ensure safe operation by operators
• Vickers, Stauff, Integrated hydraullic components
• FESTO pneumatic system
• Full stainless steel construction
• Conforms with HACCP
• CE Approved
| Model | AMF600 |
| Belt Width | 600mm |
| Pressure (Air/Water) | 6 Bar / 2 Bar |
| Power | 15.1 kW |
| Throughput | 500-1000kg/hr |
| Strokes | 30-70 |
| Product Thickness | 6-40mm |
| Max. Dia. | 150mm |
| Filling Pressure | 3-15MPa |
| Overall Dimensions | 3170 x 1176 x 2430mm |
