PACIFIC 400mm Digital Belt Flattener

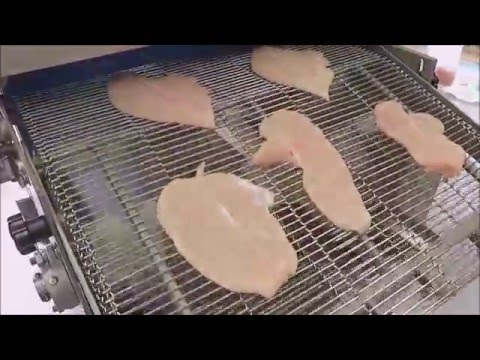

The PACIFIC 400mm flattening machine is ideal for processing large quantities of chicken, fish or meat, resulting in a consistent and well presented product which reduces your cooking, frying and overall processing times. Perfect for chicken, beef & pork schnitzels. This machine features an advanced and very easy to use digital HMI interface allowing you to program in machine thicknesses to accurately and quickly change the thickness of the machine between batches. Cleaning is made easy with a tilting top belt ensuring thorough cleaning of the top and bottom belts. Also available in a 600mm wide belt model.

  • Intelligent & simple control of thickness adjustment with a digital HMI interface
  • Save thickness settings in memory to speed up changes of product down your crumb and batter line
  • All stainless steel construction
  • Fitted with water misting nozzles to help ensure chicken does not stick to the belt after flattening
  • Textured conveyor belts ensure product will not slip and you get an even and consistent flattened product
  • Perfect for chicken & beef schnitzels
  • 400mm wide conveyor belt
  • CE Approved
  • SIEMENS Electrics
  • Creates well presented food
  • Save time on cooking, frying and further processing
  • Improve production efficiencies
  • Easy to install and clean
  • Suitable for meat, poultry & fish
  • Mainly for small to large factories and butcher shop use

Simple Digital Thickness Adjustment

Using a very simple to operate SIEMENS HMI panel you simply enter the flattening height you require and press a button on the screen, the adjustment can also be made whilst the conveyor belt is running. The speed of the conveyor belt is also adjusted from the same screen

Digital HMI interface

Simple & Easy Cleaning

The Pacific 400mm Digital Belt Flattener has been designed to make it as easy as possible to clean after use, it features a bottom mounted locking lever which can be activated once the flattener has been put into cleaning mode, this lever allows the operator to tilt the top belt to ensure that the conveyor can be cleaned thoroughly.

Easy To Clean

Model YYJ400-IV
Speed of belt 3~15m/min
Width of Belt 400mm
Flattening thickness Adjustable 5~30mm
Power of motor 3.05kW
Overall Dimensions 2300 x 1200 x 1500mm
Height of Conveyor Belt 900mm with a further 120mm of adjustment in height adjustable locking castors
