PACIFIC 200L Bowl Cutter With Unloader
CONDITION:
NEW
NEW
STOCK STATUS:
ENQUIRE
ENQUIRE
The PACIFIC 200L High-Speed Bowl Cutter with Unloader is a heavy-duty, variable-frequency processing solution engineered for the high-volume meat and smallgoods industry. Capable of processing up to 135 kg per batch, it utilizes a precision-machined 6-knife configuration to efficiently reduce meat blocks into uniform granules or fine emulsion pastes. Built to strictly meet Australian safety standards, it features an advanced 4-stage bearing sealing system, shockproof components, and Pacific's custom HMI/PLC controls, ensuring outstanding product yield, superior texture, and long-term hygienic reliability.

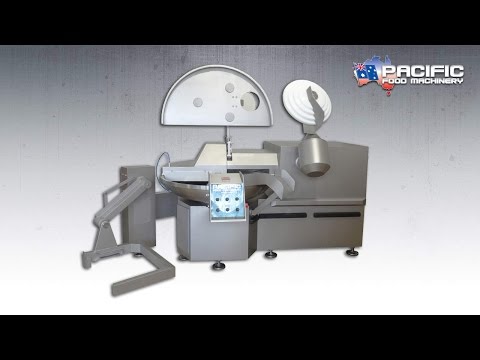

Pacific 200L Bowl Cutter in Operation
- Main Shaft: Heavy-duty Ø 50 mm shockproof bearing designed for high-torque loading and long service life.
- Bearing Protection: Advanced 4-stage air-tight sealing system (Labyrinth, Face, Radial, and Self-sealing) effectively prevents moisture and product ingress during processing and washdown.
- Manufacturing Tolerance: Key structural components are machined via CNC processing centres to guarantee precision and alignment.
- Control Interface: Integrated with Pacific standard HMI & PLC systems.
- Electrical Compliance: Wired to Australian Standards with correct colour coding and safety relays.
| Bowl Volume | 200 L |
| Batch Capacity | Up to 135 kg/batch |
| Total Power | 61 kW |
| Drive System | Variable frequency control for high-speed operation. |
| Knife Speeds | 750 / 1500 / 3000 / 4500 rpm |
| Bowl Speeds | 8 / 12 rpm |
| Knife Configuration | 6-piece irregular curve blade set (configurable to 3 pieces for specific processing requirements). |
| Knife-to-Bowl Clearance | 2.5 mm – 3.0 mm (Fixed geometry ensures clearance is maintained even after routine knife sharpening). |
| Blade Metallurgy | Manufactured from material with specialized heat treatment and precision wire-cutting for superior hardness, durability, and edge retention. |
